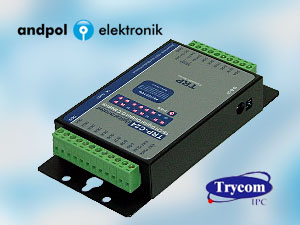

Power Input Voltage DC +10V to +30V. Protocol: ASCII and Modbus RTU. Digital output maximum voltage:+30V. Digital output maximum current: 100mA. Digital output isolation: 3750Vrms. Communication interface: RS-485 differential 2 half/duplex wires. Communication speed form 1.2Kbps to 115.2Kbps auto-switching. Data format: Data bit: 8, Parity Check: None, Stop Bit: 1. Distance: up to 4000ft ( 1200M ). Connection type: Screw terminal for maximum AWG 12 wire. Signal LED: Power, and all output channels. Power supply: Screw terminal, or external DC adapter. Power consumption 1.5W. Operating environment: 0 to 50?. Storage temperature:. -20 to 70?. Humidity: 10~90% Non-condensing. Dimension: 151mm X 75mm X 26mm . Weight: 395g .
Producent: Trycom Technology Co.,Ltd
-
- Ilość sztukCeny netto [PLN]
Ceny brutto [PLN] - 1+0.0000 0.0000
- Ilość sztukCeny netto [PLN]

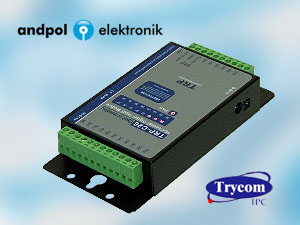

Power Input Voltage: DC +10V to +30V. Protocol: ASCII and Modbus RTU. Input channel: 16 digital input channels with counter. Input digital input counter: 0~65535. Input optical isolation: 3750 Vrms. Input logical level 0 +1V (max). Input logical level 1 +4.0V ~ +30V. Communication interface: RS-485.differential 2 half.duples wires. Communication speed: Baud rate from 1200bps to 115.2Kbps. Data format: Data bit: 8, Parity Check: None, Stop Bit: 1 . Input impedance: 3K?. Inputs can be use as counter channel: 16. Counter frequency: 100 Hz. Dual watchdog Hardware reset circuit, module and host operating status. Signal LED: Power on, all input channels Power supply: Screw terminal, or standard external DC adapter Power consumption: 1.5W (max) Operating environment: -10 to 50?. Storage temperature: -20 to 70?. Humidity: 10-90% non-condensing. Dimension: 151mm X 75mm X 26mm . Weight: 395g .
Producent: Trycom Technology Co.,Ltd
-
- Ilość sztukCeny netto [PLN]
Ceny brutto [PLN] - 1+0.0000 0.0000
- Ilość sztukCeny netto [PLN]

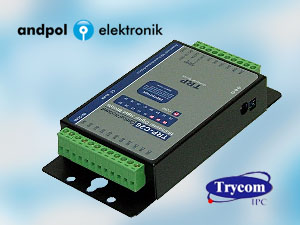

Input channel: 4 digital input channels. Input optical isolation: 3750 Vrms. Input logical level 0 +1V (max). Input logical level 1 +4.0V ~ +30V. Communication interface: RS-485. Communication speed: Baud rate from .2kbps to 115.2Kbps. Input impedance: 3Kohm. Distance: 500M (max). Digital Input can be used as counter channel: 4 Counter frequency: 100Hz. Output channel: 4 channel power reply outputs. Relay type: 2 Form A (RL1,RL2) , 2 Form C (RL3,RL4). Contact ratting: 5A /30V DC , 5A /120V AC , 5A /250V AC. Relay surge strength: 4000V. Relay operating time: 3mS. Relay operating life: 2 X 10(7). Dual watchdog: Hardware reset circuit, module and host operating status. Signal LED: Power on, all channels. Power supply: Screw terminal, or external DC adapter. Connection type: Screw terminal, accepts AWG #12~320 wires Power consumption: 2.7W. Operating environment: -10 to 50?. Storage temperature: -20 to 70?. Humidity: 10-90% Non-condensing. Dimension: 151mm X 75mm X 26mm. Weight: 400g .
Producent: Trycom Technology Co.,Ltd
-
- Ilość sztukCeny netto [PLN]
Ceny brutto [PLN] - 1+0.0000 0.0000
- Ilość sztukCeny netto [PLN]

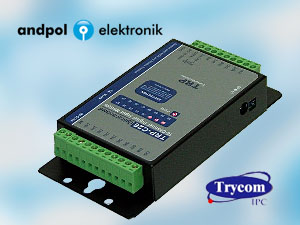

Support ASCII and Modbus RTU protocol. All channels can input analog signal by voltage or current. Baud rate from 1.2Kbps to 115.2Kbps. Surge protection on RS-485 interface. LED display to indicate power and communication status. Dual Watchdog for hardware reset circuit and host operating status. External switch for hardware and module’s configuration. Support screw terminal , or external DC power supply. Wide input range DC power supply..
Producent: Trycom Technology Co.,Ltd
-
- Ilość sztukCeny netto [PLN]
Ceny brutto [PLN] - 1+0.0000 0.0000
- Ilość sztukCeny netto [PLN]

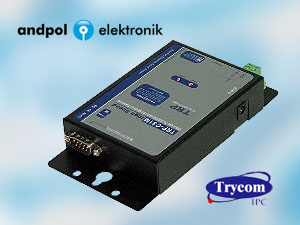

The TRP-C31M , MODBUS gateway allows the legacy MODBUS RTU/ASCII devices to operate on a MODBUS TCP network. It allows either MODBUS serial master or slave to communicate with MODBUS TCP’s slave or master. When TRP-C 31M function as “MODBUS TCP masters to RTU/ASCII slaves”: It allows multiple MODBUS TCP masters to communicate with a MODBUS serial network. the queries from different masters are pipelined and processed one by one. When TRP-C 31M function as MODBUS RTU/ASCII master to MODBUS TCP slaves: it can connect up to 8 MODBUS TCP slaves. User can specify a UID range for each MODBUS TCP slave. TRP-C 31M provides inactive timeout that allows user to specify a time period to disconnect TCP/IP connection to prevent one connection slot was occupied if there is no activity in the network., or prevent any another connection again. A friendly management software provides user an easy way of configuration over Ethernet. TRP-C 31M can work at Loop back Mode, all data is sent back immediately. This feature makes the connection testing easy. The industry standard DIN rail and panel mount design enable user a fast and professional installation.
Producent: Trycom Technology Co.,Ltd
-
- Ilość sztukCeny netto [PLN]
Ceny brutto [PLN] - 1+0.0000 0.0000
- Ilość sztukCeny netto [PLN]
Producent: Trycom Technology Co.,Ltd
-
