./foto_grupa/2027.jpg

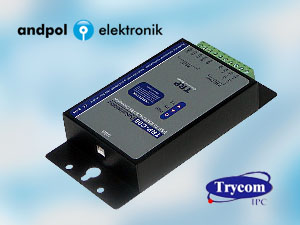

USB interface: Fully compliant with V1.0, 2.0 specification. USB to serial bridge controller; Prolific PL2303HX. RS-232 signal: 5 full-duplex (TXD, RXD, CTS, RTS, GND). RS-422 signal: Differential 4 full-duplex wires (TX+, RX+, TX-, RX-). RS-485 signal: Differential 2 half-duplex wires (D+, D-). Data Format: Asynchronous data with all common combination of bits, parity, stop. Parity type: None, odd, even mark, space. Data bit: 5, 6, 7, 8 or 16. Stop bits: 1, 1.5, 2. Cable: USB type A to type B. Communication speed: 75~256KBbps. RS-422/485 line protection: Against surge, short circuit, and voltage peak. Transmission distance: RS-422/485 Up to 4000ft (1200M ). Connection type: Screw terminal accepts AWG #12~30 wires. Signal LED: Power on, TX, RX. Direct power from USB port. Power consumption: 1.2W. Isolation voltage: 3000V DC. Operating environment: -10 to 50? . Storage temperature: -20 to 70?. Humidity: 10-90% Non-condensing. Dimension: 151mm X 75mm X 26mm . Weight: 375g.

Producent: Trycom Technology Co.,Ltd

./foto_grupa/2026.jpg

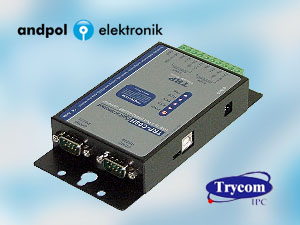

Input: USB 2.0 protocol. RS232 output: Standard 9 pin DTE full-duplex. RS422 output: Differential 4 full-duplex wires (TX+, RX+, TX-, RX-) RS485 output: Differential 2 half-duplex wires (D+, D-). Data Format: Asynchronous data with all common combination of bits, parity, stop Parity type: None, odd, even mark, space. Data bit: 5, 6, 7, 8 Stop bits: 1, 1.5, 2. Cable: USB 2.0 type A to type B cable. Communication speed: form 300bps to 256Kbps. RS-422/485 line protection: Against surge, short circuit,+/- 15KV ESD and voltage peak. RS-232 line protection: +/- 15KV ESD. Distance: RS-422/485 Up to 4000ft (1250M). Connection type: Screw terminal for maximum AWG #12~30 wire. DIN rail and panel mount support. Power consumption: 260mA by USB power. RS422/485 Optical Isolation: 3000V DC. Operating environment: 0 to 65?. Storage temperature: -20 to 65?. Dimension: 151mm X 75mm X 26mm. Weight: 395g. Humidity: 10-90% non-condensing.

Producent: Trycom Technology Co.,Ltd

./foto_grupa/2025.jpg

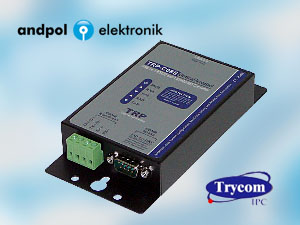

USB-2.0 Device Controller OS. system get dual port UART serial (1*RS232 and 1*RS422/485). On-Chip 512-Byte FIFO for upstream and downstream data transfers for serial Port. Fully PLC support such as Mitsubishi Q,FX and FATEK serial.... Auto direction flow control on RS-485. Auto baud rate switching from 75bps to 921.6 Kbps. 256 byte buffer for upstream and downstream data flow. Direct power from USB port , no external power necessary. 3000V DC isolated protection. Surge protection on RS422/485 data lines. Power and TXA/RXA/TXB/RXB communication LED indicator. DIN rail or panel mount support. Driver support: Vista64/32,Windows 98/ME/2000/XP/CE3.0, and Linux, and Mac OS.

Producent: Trycom Technology Co.,Ltd
